CALIFORNIA AIR TOOLS 8010DSPC



8 Gallon, 1.0 Hp Ultra Quiet & Oil-Free Air Compressor with

80% Air Dryer, Aftercooler and Sound Proof Cabinet

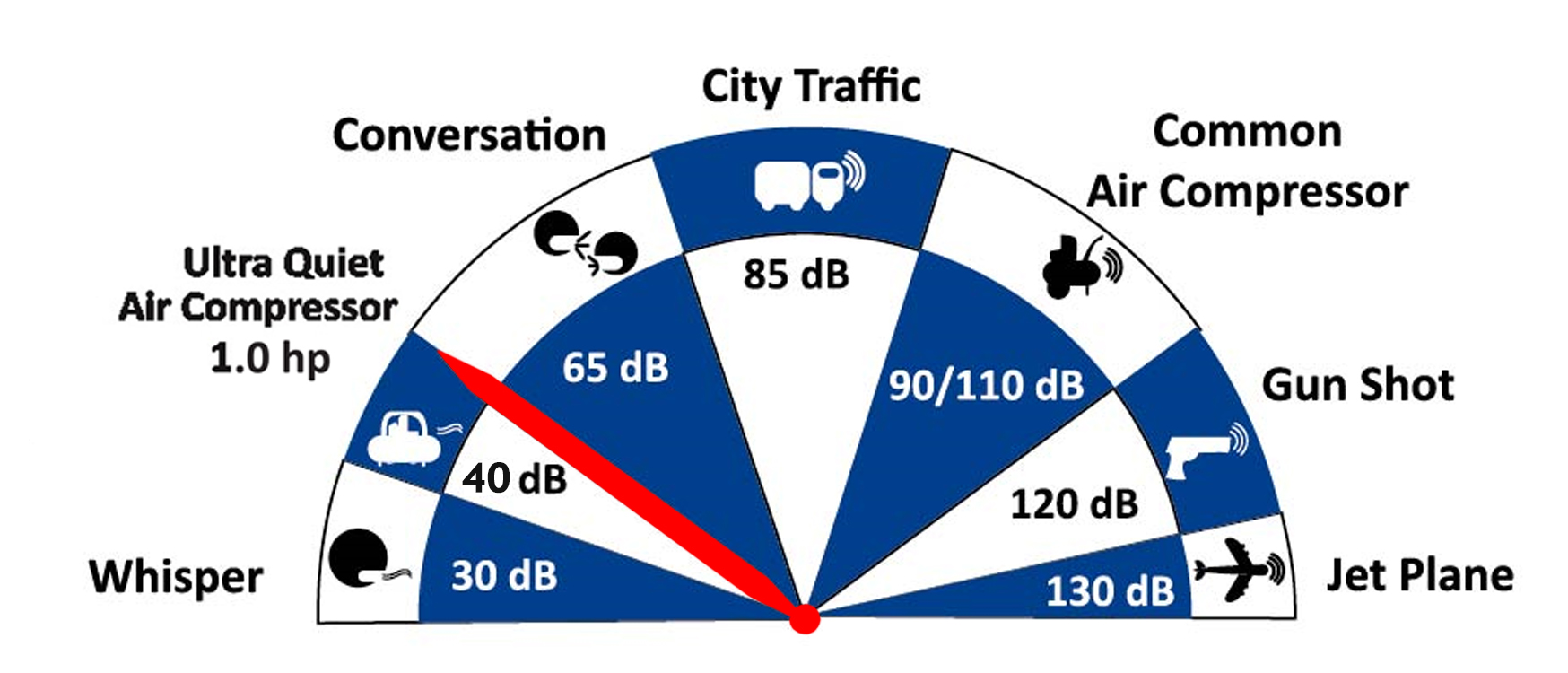

40 dB Noise Level



110v  60hz



40 Decibel Noise Level



1.0  HP (Rated/Running)



8.0  Gallon Coated Steel Air Tank



4.00 CFM @ 40 PSI



3.00  CFM @ 90 PSI



80% Air Drying System







The CALIFORNIA AIR TOOLS 8010DSPC Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 1.0 horse power air compressors in the industry having only 40 decibels of sound.



The powerful 1.0 HP motor operates at only 1400 RPM creating less noise, vibration and creating less wear.



The Oil-Free Dual Piston Pump System is  engineered for longevity, high performance and durability.*



The CAT-MP100LF Motor/Pump is tested for a minimum pump life of 4000 hours before service. 30% more life before repair.



The large 8.0  gallon steel air tank is internally coated with epoxy to prevent any corrosion.



The complete Sound proof Cabinet is 157 lbs.



The Sound proof Cabinet is made of a sturdy metal frame with 1/4" Acoustic Sound Proofing Foam insulation to reduce the noise by 30%.



The cabinet has two latching doors that allows for easy access to the air compressor and componets.



The two cabinet exhaust fans are used to remove air from the cabinet for a cool working condition for the air compressor



The 4 caster wheels makes moving the air compressor from location to location very easy.



The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.



To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized.



The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.



This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.





Features:

* Ultra Quiet  -  Only 40  decibels

* Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.

* Two pressure control gauges

* One - Female industrial "Push to Connect" quick connector

* Thermal Overload Protector

* 115 PSI  Maximum Pressure

* Kick On Pressure 85 PSI  - Kick Off Pressure 115 PSI

* 110v / 60 Hz

* Low Amp Draw - Only 7.6  Amps

* Commercial Use: Refer to State & City Codes

* Tank fill rate from empty to full 3.15 minutes

* Duty Cycle - 70/30*

* Maximum continuous running 30-60 min. (Depending PSI & CFM)

* L (21") x W (26") x H (32")

* 157 pounds

* Non-ASME Air Tank

* 18 Month Limited Warranty

* Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life.

   Activated Alumina is used in air prepurification (due to it's high water

   and carbon dioxide adsorption capacity) and adsorption of sulphur

    compounds.

* Aftercooler (condenser)

* Sound Proof Cabinet

* 4 Caster Swivel Wheels

* Commercial Use: Refer to State & City Codes



California Air Tools 8010DSPC Air Compressor Owner's Manual
California Air Tools 8010DSPC Air Compre[...]
Adobe Acrobat document [2.2 MB]
CALIFORNIA AIR TOOLS 8010DSPC Product Data Sheet
CALIFORNIA AIR TOOLS 8010DSPC Product Da[...]
Adobe Acrobat document [535.9 KB]

*70/30 Duty Cycle Rating - Learn More  (i.e. may run continuously at 1.5 cfm @90 PSI for up to 4 hours, or intermittently at 3.0 cfm @90 PSI during standard work day. Do not allow motor to run continuously for more than 60 minutes.)

8010DSPC is available from:

     MULTIPLE AUTHORIZED RESELLERS

     CALIFORNIA AIR TOOLS DIRECT

Optional PTFE Black Hose Tubing, 8 mm (10 feet) to connect to Drain Valve, Air Dryer Valve or Condensate port - Order Here.

Optional Model Available:  CAT-8010DSPCAD

                                          EZ-1-2321 Auto Drain Valve Factoy Installed



The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.

The manually set timer allows you to set the time for both the frequency and duration of the draining process.

Automatic Drain Valve Demonstration:

Optional PTFE Black Hose Tubing, 8 mm (10 feet) to connect to Automatic Drain Valve, Air Dryer Valve or Condensate port - Order Here.

California Air Tools 8010DSPCAD Air Compressor Owner's Manual
California Air Tools 8010DSPCAD Air Comp[...]
Adobe Acrobat document [2.1 MB]
EZ-1 Automatic Drain Valve Owner's Manua[...]
Adobe Acrobat document [2.0 MB]
CALIFORNIA AIR TOOLS 8010DSPCAD Product Data Sheet
CALIFORNIA AIR TOOLS 8010DSPCAD Product [...]
Adobe Acrobat document [543.3 KB]

*70/30 Duty Cycle Rating - Learn More  (i.e. may run continuously at 1.5 cfm @90 PSI for up to 4 hours, or intermittently at 3.0 cfm @90 PSI during standard work day. Do not allow motor to run continuously for more than 60 minutes.)
